How to Remove an Image, Logo or QR Code From a PDF for Real
Understand visual cover versus structural PDF removal, why QR codes may be vectors, and how to remove the right object without hiding nearby content.
Hiding an object is not the same as removing it
Many online PDF tools offer a whiteout rectangle. It is useful when you only need a clean-looking page, but it usually adds a new white shape above the original content. The hidden logo, image or code can still exist lower in the page object stack.
Structural removal changes the PDF instructions or resources that paint the selected object. When it succeeds, there is no cover rectangle to overlap a table line or hide neighboring vector artwork.
| Result | White cover | Structural removal |
|---|---|---|
| Looks blank on a white page | Usually | Yes |
| Works on colored or patterned backgrounds | Often visibly wrong | Preserves what was behind the object |
| Removes the selected paint operation | No | Yes, on supported structures |
| Can accidentally cover nearby content | Yes | Selection must still be precise |
| Appropriate for secure redaction | Not by itself | Requires a dedicated verified redaction workflow |
Structural object removal is not automatically secure redaction. Metadata, duplicate content, alternate streams or embedded attachments may still contain sensitive information.
Why a QR code may not be an image
A QR-looking mark can be stored in several ways:
- one raster image;
- hundreds of small vector squares;
- a reusable Form XObject containing both images and vectors;
- part of a larger flattened page image.
The correct removal method depends on which representation the source PDF uses. Treating every black square as an independent “image” can create hundreds of selections. Treating the whole page as one image can remove far too much.
Logos are often compound objects
A logo that looks like one unit can contain a raster wordmark, a vector color accent and a transparency group nested inside a reusable form. Deleting only the raster portion leaves the vector mark behind. Deleting the shared form without isolating the page can change the logo on every page that reuses it.
A conservative editor should:
- analyze the selected page and its resource path;
- identify whether the object is shared;
- clone shared resources before changing one page;
- remove only the selected invocation;
- fail closed when the target is ambiguous.
That is why UnoPDF distinguishes detected raster images, vector groups, QR patterns and nested objects. On supported PDFs, the signed-in structural workflow sends the selected operation through an authenticated deterministic PDF worker and reloads the rewritten file. It does not give the browser a general-purpose server credential.
A safe step-by-step removal workflow
- Open a copy of the original PDF.
- Choose Remove Image to analyze document objects.
- Inspect the outline. It should match only the logo, QR pattern or vector band you intend to remove.
- Click the target and wait for the rewritten page to reload.
- Check repeated pages to confirm that a shared object was not changed elsewhere.
- Preview and export a new copy.
- Reopen the exported PDF and zoom into the former object boundary.
If the editor reports that the structure is unsupported, stop and choose explicitly between a visible cover and leaving the document unchanged. A tool should not call a cover “real deletion.”
When to use redaction instead
Use a dedicated redaction workflow when the object contains personal data, a confidential identifier or information that must be irrecoverable. Proper redaction includes removal, sanitization and verification—not only a clean appearance.

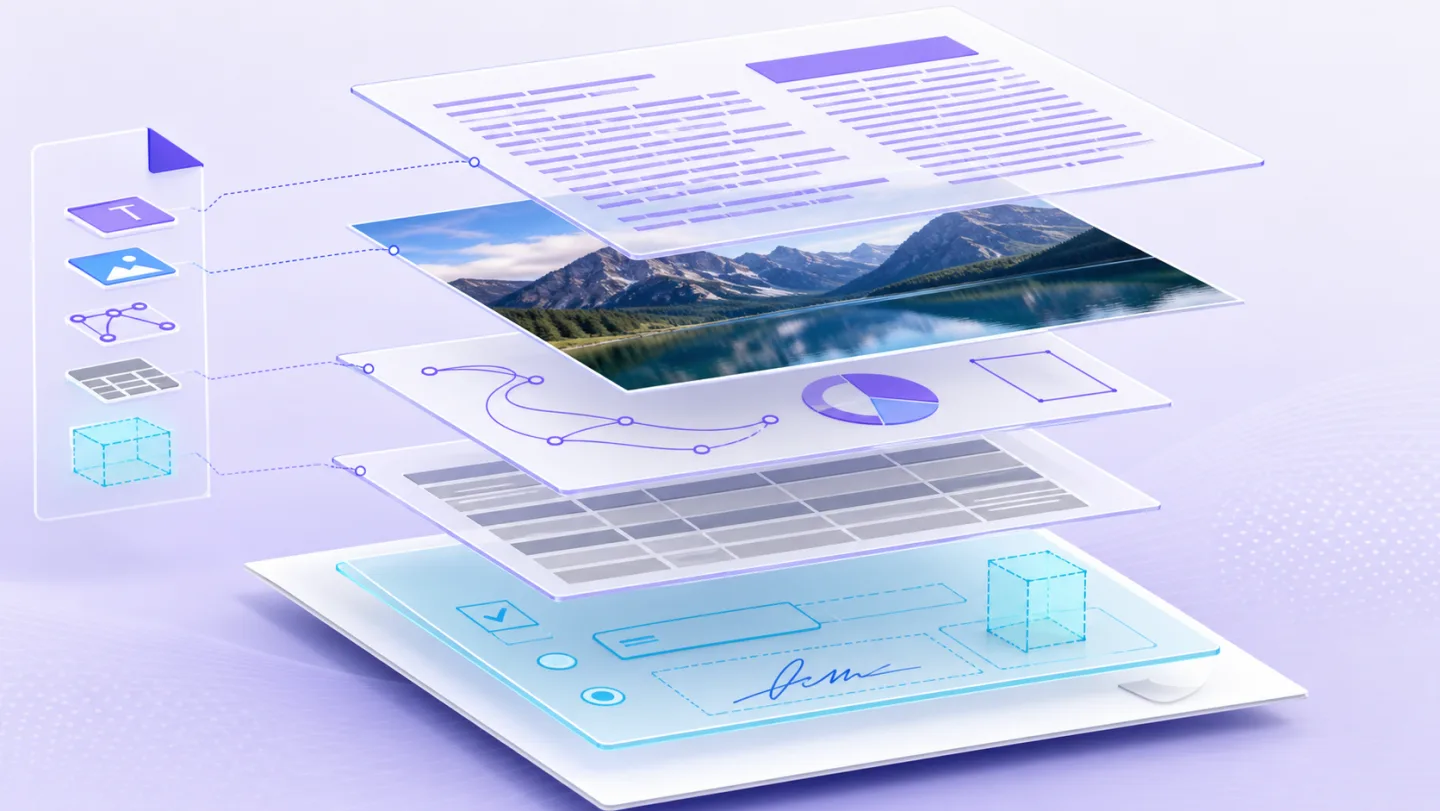

For ordinary branding cleanup, layout correction or removing an obsolete QR destination, object-level editing is the relevant workflow. Learn more in PDF text, image and vector layers, then open the editor with a test copy.
